SMK 501 Seal Set

501ss

£16.89 inc. tax

Relief Valve spring in Stainless

Add to Cart

Add To Wishlist

SMK 501 Seal Set Summary

SMK 501 Seal Set

501 High Quality Seal Kit full set including the exhaust valve seal to fit my Exhaust valve, and the large one for the reservoir bottom (SMK Call it a Frame seal).
The front cap O ring is special for the front and the red one is for the valve body. The exhaust valve seal is made for our exhaust that can be unscrewed to replace the seal. To replace the seal in our exhaust valve you simply unscrew the stainless steel shaft and remove the old seal, then put our new seal in with the shines side facing out and the dull side at the back. The standard one is riveted so cannot easily be changed. Do not over tighten as this will distort the seal.
Seal Kit includes:

501 Seal Set

2 X BarreL
1 X Pellet Probe .22
1 X Exhaust V Body
1 X Exhaust seal Orange
1 X Relief Valve seal Orange
1 X Cylinder Seal Grey
1 X Front Cap HD Blk
1 X Valve Body Blk
1 X Small Sachet seal lubricant.

Please Note that the colours may vary.

I have added the option of an extra Exhuast Valve seal in the options tab if you want a spare. And also a weaker Stainless Steel Return Spring for the relief valve.

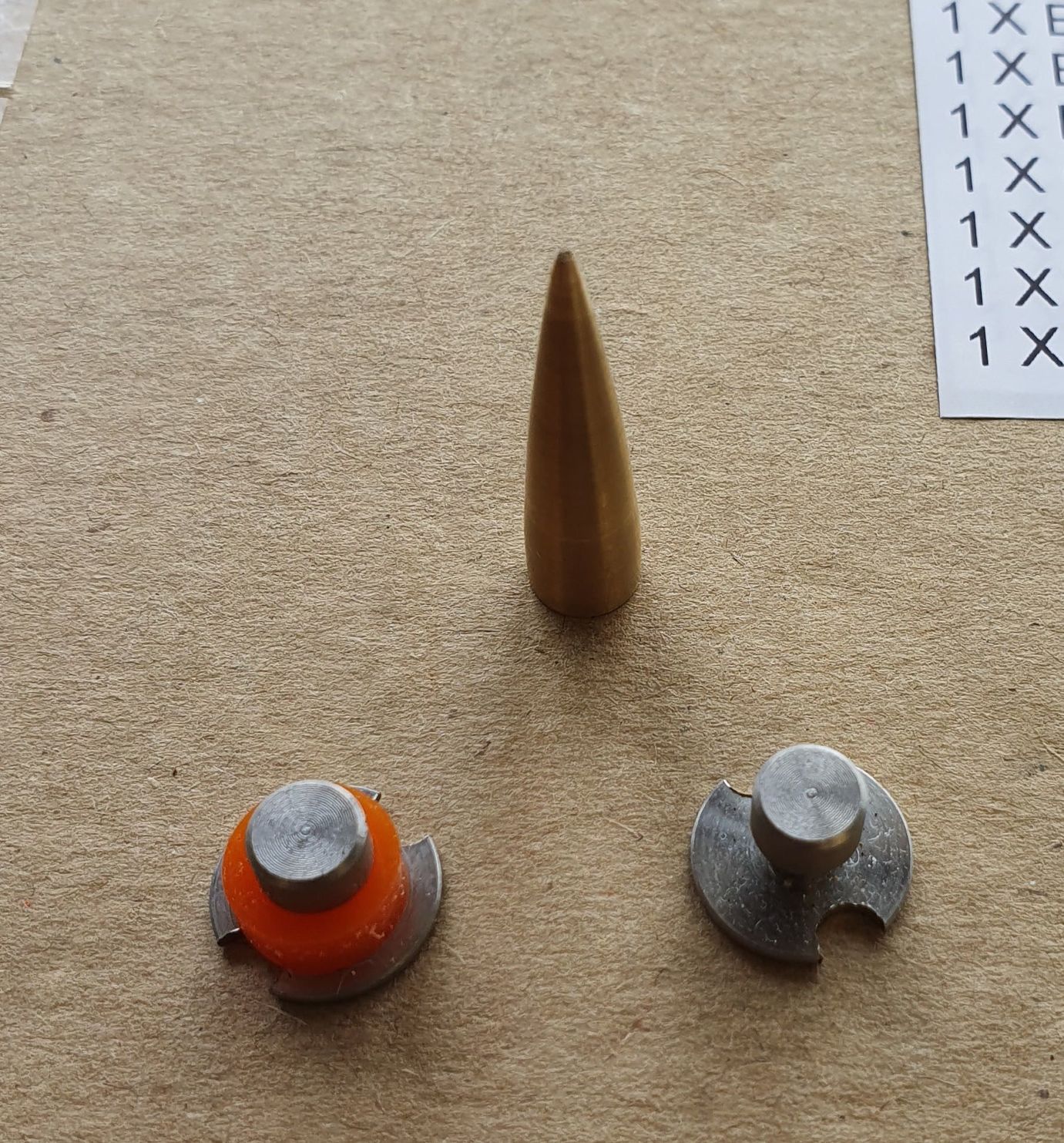

Note: It is very hard to get the Orange relief valve seal on to the metal carrier, so I have made a pointed tool that makes it a lot easier. I have made these for other Gunsmiths and Semi professionals. This is shown just to the right of the Orange Relief Valve seal on the last photo.

Brand:

T R Robb

Product Condition:

New
